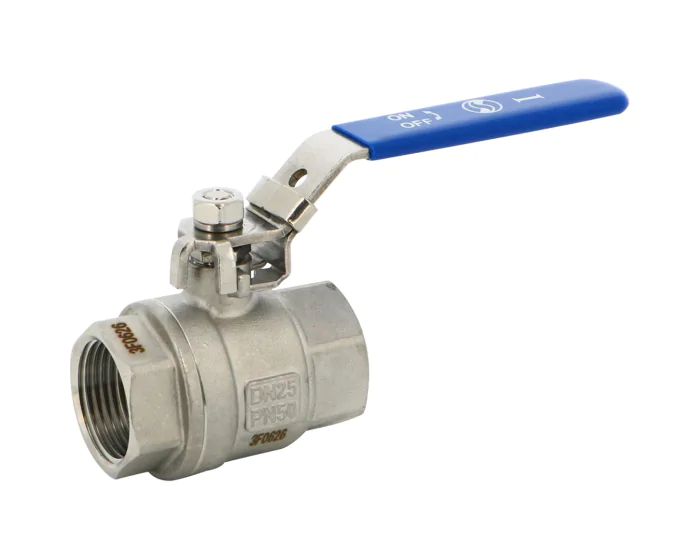

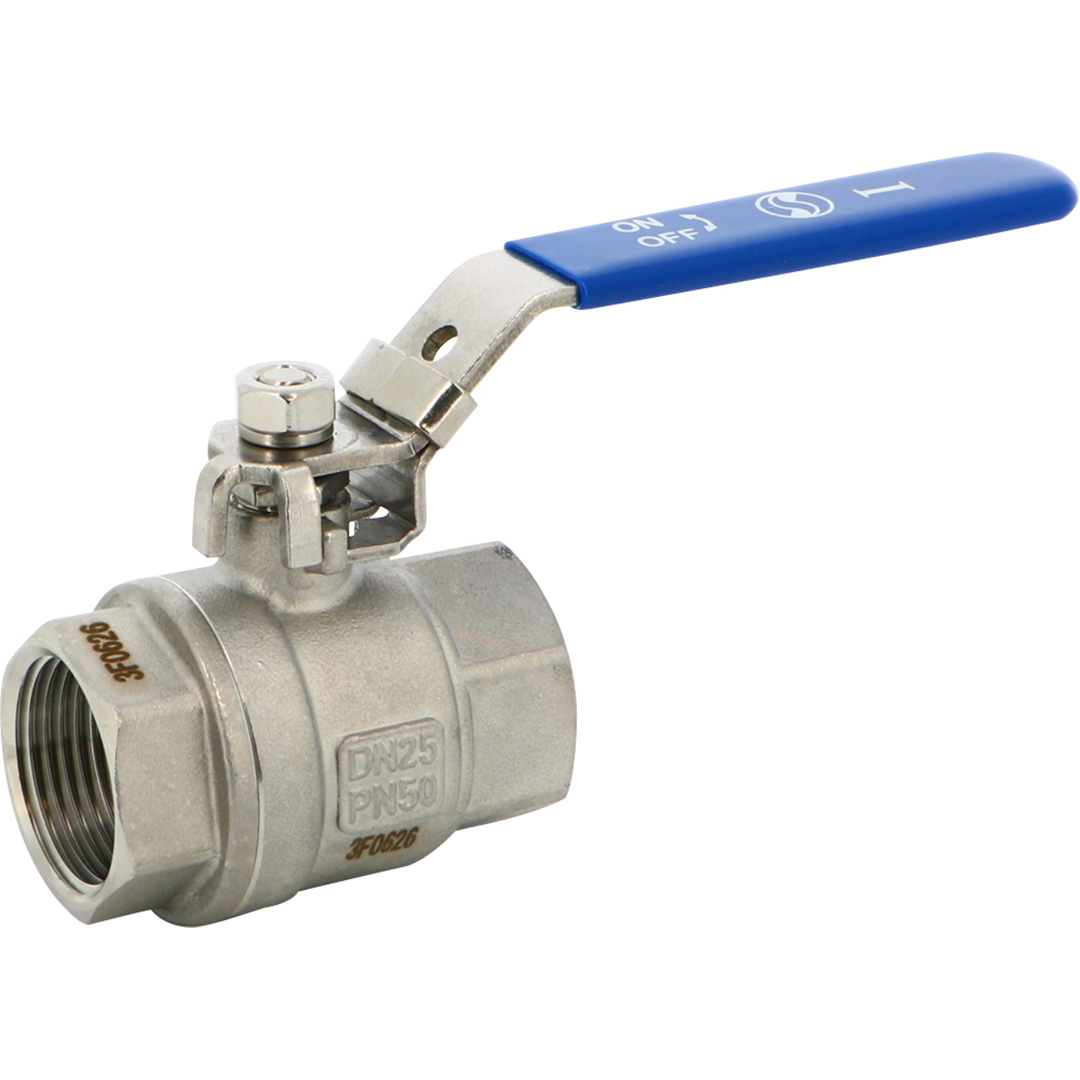

The 7152 stainless steel 2-piece ball valve with BSP female/female threads includes a decompression hole and PTFE seats. Designed for chemical and pharmaceutical industries, it ensures safe and reliable flow shut-off.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| CE risk category | III Module H |
| Thread standard | ISO 228-1 |
| Tightness test standard | EN 12266-1 Rate A |
| Stem sealing material | PTFE gland packing |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Stainless steel AISI 316 |
| Lockable | Yes |
| Torque (Nm) | 3 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 610.0 |
| Fluid | Compressed air |
| Kv (m³/h) | 6.6 |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | No |
| Packing gland | Yes |
| PS (bar) | 8 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -20 |
| Ball valve design | 2-piece body |
| Warranty period | 2 years |
| CE | Yes |
| Handle material | Stainless steel AISI 304 |
| Handle type | Blue lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/4'' | 715202 | S1006384 |
€7.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/8'' | 715203 | S1006385 |
€7.69
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1/2'' | 715204 | S1006386 |
€9.43
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 3/4'' | 715205 | S1006387 |
€12.07
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body 1'' | 715206 | S1006388 |
€16.19
(excl. btw)
|
add to cart |
